Balancing 3-Blade Propellers

The information presented here will grow. It's current form is made available to get folks moving towards saving another Bebop from vibrational induced death. More details will be added as time allows. Corrections and suggestions are always welcomed. Now.. On to the topic...

Balancing propellers greatly reduces vibrations that cause component damage and jello in video recordings. A perfect bench task for rainy days. Balancing is not difficult but does require a little patience and a bit of time..however, the results are well worth the effort.

Parrot Bebop 3-blade props are a patented proprietary design with hubs (holes & w/o holes) that help users install the correct props onto the correct motors. The props without center-holes present a problem for balancing. Balancing 3-Blade Propellers without center holes is possible using one of these optional methods and their tricks.

Starting with new parts is preferred. Balancing damaged parts may not have the desired result. If a rotor cage is warpped, or a motor shaft is bent, or a prop is damaged/bent..you are wasting your time balancing them into the mix. New parts are not balanced. Damaged parts shouldn't be used. Inspect every part very thoroughly before balancing them.

The Optional Balancing Methods...

1. Non-Powered Dynamic Balancing
Using a Bebop motor bearing shaft to support an uninstalled rotor with a prop attached. Hand-spin and gravity isolating. May be the most inexpensive method to employ..if a sacrificial motor can donate it's bearing shaft.
Startup cost may be free or $10-$30 USD.
Supplies: one sacrificial motor. See video below.
Pros: Simple process. Low startup skill-level required. Quick to setup and use.
Cons: Analog, one motor sacrificed. Motor not powered through operational range.

2. Dynamic Laser Balancing
Uses laser reflection to visualize vibrations of one assembled motor/rotor/prop mounted on its arm and independently powered through its operational range. Vibrations are isolated while one motor is running as speed is increased. Requires motor circuit isolation and independent power via a 3S LiPo battery, electronic speed control, and a servo motor controller.
Startup cost is about $40 USD.
Supplies: laser, small mirror or piece of a CD-ROM disk, 3S LiPo, ESC, Servo Motor Controller.
Pros: Balances through powered range.
Cons: Motor circuit isolation. Moderate setup, startup skills, and equipment costs.
Video: coming soon

3. Dynamic Vibration Reduction
Uses a vibration detection and imaging smart phone app to visualize vibrations of an assembled motor/rotor/prop mounted on its arm and independently powered through its operational range. Requires disconnecting one motor for independent power. Vibrations are isolated while one motor is running as speed is increased.
Startup cost is approximately $40 USD before smart phone costs.
Supplies: Smart Phone, 3S LiPo, a 5-6v battery, brushless ESC, Servo Motor Controller.
Pros: Balances through powered range.
Cons: Motor circuit isolation. Moderate setup, startup skills, and equipment costs.
Video: coming soon


Pic of Typical Balancer:
A typical balancing jig uses a central support rod through a prop's center-hole. Good for props with center-holes..impossible for props w/o center-holes. I wouldn't recommend drilling a hole. Fracturing the plastic hub is easy and risks failure mid-flight.

Thursday, February 23, 2017

'Space Shuttle Door Gunner' My Version...


A 'Space Shuttle Door Gunner' (or, SSDG) is used to describe someone that is bragging about some ultra-cool job position or experience not specifically related to military service. Similar to 'stealing-valor' but the teller usually isn't claiming to be or have been enlisted in the military. Merely some kind of amazing inflated story about their abnormal civilian work.

Stories of being a civilian helping Aliens fight Aliens on the Dark Side of the Moon..and other tall-tales of crazy-heroism, of super-secret operations involving the darkest covert groups doing unimaginable 'work', or living through death-defying acts in that line of work. Ref. the movie "Gravity". Maybe not the healthiest lies..but, still not the types of people that steal valor and need mental help but instead choose to try bragging for 'wows!' or to steal a veteran discount.

Sometimes a story might be legit. Especially, if there actually are space shuttle door gunners fighting aliens on the dark side of the Moon. Sure, why not..? Or, someone might have tales of lesser feats that still might be hard to believe.  The only legitimate reason to practice being a SSDG is story-inflation to score.

In the James Bond movie 'Moonraker'...there is a moment between Bond and Miss Moneypenny that exactly demonstrates the legitimacy of story-inflation to score and its entirely acceptable. As long as scoring IS the result, the ends justify the means. His reason below is even used by a lot of SSDGers. But, this wasn't for Miss Moneypenny and Bond never has to inflate his stories to score with chicks...watch the movie though. Miss Moneypenny had a burning crush for Bond.

Miss Moneypenny: James! But, why are you so late?
James Bond: I fell out of an airplane without a parachute. Who's in there?
Miss Moneypenny: Q and the Minister of Defense.
James Bond: You don't believe me do you?
Miss Moneypenny: No. And you should go right in.

So, I know there were no door gunners in NASA's Space Shuttle program..I Was There..in the bowels.

Maybe 2006, STS OV-095 Payload-Bay
My actual stories sometimes seem like B.S. Its hard to lie when the truth is crazy enough. But, there was a time when 'my office' (my desk, chair, phone, calendar, manuals, file cabinets, and space aircraft bits...but, no mini-guns) happened to actually be in the payload-bay of one of NASA's Space Shuttles...the OV-095. The reasons why the OV-095 payload-bay would become office space is simple. Office space in the Space Shuttle Avionics Integration Labratory Bldg. 16 and 16A was very limited. Since I was tasked with watching every bit of the OV-095 ..my office was smashed into the payload-bay until 'better' office space opened up about 2 years later. I do know that simulated space is still very cold. Here is a picture of me nearly freezing. The blue cabinets were full of computers and other assorted flight support equipment needing a lot of cooling.

Sunday, February 12, 2017

Parrot Bebop 1 Battery Balance Port

The Parrot Bebop 1 LiPo battery can be charged with a much better balance charger than the stock charger.  To do so only requires a couple of connections for a B1 battery to hookup to an typical LiPo Balance Charger.  The battery has the required ports just not in the typical locations or using the typical connectors. The B1 battery's balance port is embedded into the battery enclosure above the main power output connector. Those 4-golden contacts require a special balance connector. Reaching them in some way is needed in order to use an aftermarket balance charger. A few options exist to make the connections. One is already in your junk pile...I'll explain...

The easiest, quickest, and cheapest route to the balance port is to use a part from the stock charger..hey, it saves $5-$10 and repurposes a hunk of junk. You might think it's a sacrifice..but the stock charger isn't healthy for any LiPo investment anyway. So, hack it open and remove a little bit of its guts. That is a picture of the 3S 4-wire balance cable removed from the stock charger. This is the part needed to connect between the new charger and the battery's 4-golden contacts for balance charging and to LiPo checkers to measure the individual voltages of the 3 internal cells. The pics below will help you hack the part out.

Start with 2 screws under the bottom corners of the stock charger's back label.  Some rubber glue is holding components in place..just carefully remove the glue until you free the parts. Separate the halves and disconnect the 4-wire connector without damaging the wires. The rest of the disassembly is just a matter of removing more rubber glue and parts until the little adapter is free from the stock charger.
Once free from the stock charger..the little adapter requires a secure connection to the 4-golden contacts of the battery before charging. Several ways to position the connectors could be developed to accomplish a firm connection. Hot Glue is a great filler. Part of the stock charger's shell could be used as a tray or to fabricate  a special connector for quick and secure connections. The little balance adapter can be stacked on top of the mini-Tamiya connector for the main power connection..as in a picture below. The mini-Tamiya has a lock-clip that can be snipped off to make some room and disconnections easier. Sometimes the springs and 4-golden contacts may need cleaning to make a perfect connection.

The final configuration can look like this: (this example is by Jimmy Thompson)

Option #2 to reach the 4-golden contacts of the balance port requires some time, money., and a bit of luck..since the ready-made part is becoming rare. This Anbee/YX Bebop Charge Adapter Tray/Plate is/was available at Amazon, eBay, and other online shops for about $5. It is usually sold-out in every place other than China..so be prepared to dig for it and wait for it to arrive. It is a structurally stable setup and is worth the price and wait. So, the stock charger's balance adapter might be the best route..but, this jig works very well and can also be used with a LiPo checker to quickly measure voltages.

It is very important to connect both the main Black/Red power port leads and the Balance lead to the charger to properly 'Balance Charge' multi-cell LiPo packs such as the Bebop 1 3S (3-cell) battery. The charger must be set to 'Balance' charge..not just 'Charge' or 'Fast Charge' unless the charger is actually balancing with those settings.

All LiPo multi-cell battery packs like the Bebop 1 require 'balance' charging to insure the internal cells (3 inside B1 packs) have the same amount of charge to supply the required voltages as needed during a flight. Some of Parrot's stock chargers have a few problems. Mainly, it does not show you the pack voltages or any other information about the battery or its health. Some stock chargers do not fully-charge a pack or balance the cells properly. I recommend finding a better battery charger and picking up a few habits that will make Bebop batteries last a looong time and live very productive lives. Several great balance chargers can provide far more therapy for expensive LiPo batteries. Give one a try and realize why saving expensive LiPo batteries will help the fun keep flying high.

If have a question add it in the comments!

Have Fun!

Wednesday, January 18, 2017

Parrot Bebop 2 Battery Charging

The Parrot Bebop 2 battery pack provides the only means of power to maintain flight. How well and how long depends on a few easy to learn maintenance habits that will help Lithium-Polymer ('LiPo' or 'Li-Ion Polymer') packs perform as expected and live longer lifespans. Weakened LiPo packs can cause legitimate 'fly-aways' usually from bad cell voltage fluctuations leading to the unexpected system reactions to unusual battery behaviors..this also can trigger shutdown mid-flight. The Parrot battery packs are good quality but expensive and need attention like most other flight LiPo or they will die and take your Bebop too.

Ready for the meat of the subject now? It will be easy to understand and worth the effort. After you read this you will have a much better understanding of LiPo therapy. I will start with the Stock OEM Parrot Bebop 2 battery.

The Parrot Bebop 2 OEM battery pack is an encased 3-cell 2700mAh 3S 11.1volt LiPo. Parrot recommends "Charge at 3.5A Max" which is higher than the usual "1C charge rate" of typical R/C LiPo batteries. "1C" means that a battery can handle being charged at 1x the specified mAh written on a LiPo battery. Higher performance packs can handle higher than 1C charge rates..but more on that and connection details later.

LiPo Do-Nots...(one "Do"now..always watch LiPo charge)

-Do Not discharge below 10% remaining power as reported in FreeFlight Pro. Land well before this number or risk discharging below a safe voltage level for LiPo to remain healthy. Every dip below 3.2 volts per cell will add damage and shorten its life and harm expected performance. Failing cells will have voltage levels lower and weaker than the other cells. All of the cells should be about .2 volts within each other. A dying cell will not hold a charge as well as the others..or have the capacity. It could be target-charged to bring it up to match the other voltages and become balanced with the other cells...but it may be dying anyway. Discharging to zero equals LiPo death.
-Do Not store battery packs while discharged too low or with fully-charged voltage levels. Below 3.2 volts per cell is too low. Fully-Charged and it is like a grenade ready to blow. Flying a pack discharging it to about 45% to 60% as reported by FreeFlight Pro will pull the voltage level down to an approximate Storage Voltage Level or 3.75 - 3.85 volts per cell.
-Do Not let battery packs get too hot. At 140F damage occurs and where LiPo is at risk of rupture or 'venting'..like a volcano. If in your hot car or sitting on a charger too long in your home..the result can be disastrous. Normally, the battery only should be a little warm after a flight. LiPo likes to be about 95F at lift off summer and winter. Though, let the battery cool down between charge cycles and flight.

Note: FreeFlight Pro reports remaining battery charge measurements taken during flight. Voltages fluctuations can cause reporting errors. A failing battery may even dump or fail to supply voltage demands to the point the system shuts down..and the Bebop falls. Cold weather has the same affect on all LiPo chemistry cells.

Now, the "Do's" will be explained in the handling and charging processes described below. New LiPo packs need a few cycles after birth/storage to perform as expected and become trusted for expected flight performance. So, don't trust them for a few flights..keep the Bebop low and slow until you get a good feel for a battery's behavior and performance before you get too far down the road.

Charging the Bebop batteries with the included stock charger is not a great solution to continue for long. The batteries can discharge below the level that triggers the stock charger to charge. Some tricking is needed..but not recommended. Some Bebop 2 boxes have been on the shelf for a year or more at this point in time. Batteries from new sealed boxes can self-discharged to unhealthy level and may not be capable of supporting safe flight. The stock charger do not provide any information about the pack or its status. Without a way to monitor your batteries it is impossible to know enough to keep the Bebop flying as expected for as long as expected. The stock charger can balance the packs well enough for 6 months of fun. But, these packs can usually live a much longer and more productive lives.

To Charge a Parrot Bebop 2 Battery pack..first, stop using the stock charger. Then, find a better balance charger with a display that can do more and show you what is happening with the LiPo cells. I use the one pictured here. It is very capable and more modern and being actively supported..more than 4-button chargers these days. 4-button chargers are really good and some offer some really great functions. Most of the veteran users will use them. New chargers are being released often. The iSDT chargers are very easy to use, updatable, and have performed better than my 4-button chargers.

Here is my iSDT SC-620 charger connected to a Bebop 2 battery. The custom adapter cable shown in the pic is needed to complete the setup. That adapter is hand-made and different versions can be purchased from different sources. This one is from Clifford Raccani. Contact him for a one until he quits making and selling them..or contact me..I will be making several different versions for different applications for North American users. If you have basic solder skills or want to learn how to make your own cable..watch Clifford's video: https://youtu.be/orESacSy2ro



The short main power portion has an XT-60 connector (yellow) soldered on the end leading to the charger's main output. The XT-60 is a very common connector used with many LiPo batteries, chargers, and other RC systems. Usually, this would connect to an adapter supplied with the charger to complete the connections.

NOTE:  Both the 4-wire balance lead and the 2-wire main power lead need to be connected to the charger to be able to balance charge the internal cells properly.

Due to the flexibility of the iSDT chargers, it is possible to charge a LiPo battery with a larger LiPo battery, or from a larger deep-cycle 12volt battery, or from an old PC's power supply, or with an old 12volt 5Amp laptop power supply from a wall plug. Since this is a fact..a power supply is also needed to power the iSDT chargers. There is an  included 12volt adapter with alligator clips and the XT-60 that matches the iSDT charger's power input port. Other options will need the XT-60 to match the charger. If soldering is not your preferred method of DIY..you need to find the appropriate adapters to complete the connections.

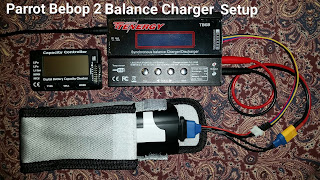

An optional charge setup requiring less work upfront are 4-button chargers. Below is a Tenergy TB6B 4-button charger connected to the Bebop 2 battery. Many 4-button chargers include a 'squid' connector lead with an assortment of common connectors to match most systems in use today. Some 4-button chargers will need a power supply. The Genuine SkyRC Imax B6ACv2 has an internal power supply making it a little easier on beginners. Most 4-button chargers use 4mm banana plugs to output the main charge current to the battery lead..I have one with the yellow XT-60 connectors as seen in the picture. Other good brands of 4-button chargers are available. Just be sure to buy "Genuine". Adjustments can be made to most of these units to better calibrate its measurements. But, usually most of them are close though the readings may not be in sync with every other voltage meter that isn't calibrated either.

Setting a charger to charge a Bebop 2 battery.

Generally..make sure that you are charging to the battery's specs as labelled on the battery and that the charger is always set to "Balance Charge"..Not "Fast Charge" or even just "Charge". Both the 4-wire balance connector and the 2-wire main lead connector have to be connected for the charger to balance charge the internal cells properly. When balance charging, the input charge is individually added to each cell and they are increased equally until fully-charged or when the set cut-off voltage is reached. Most chargers will automatically set some aspects like battery type, cell number, max charge voltage level cut-off, discharge voltage level cut-off, a set storage level voltage, and possibly a charge rate amperage value. Nothing to sweat about.

Balance charge Bebop 2 batteries at a 3.5Amp charge rate or below. This setting is important..and selectable before starting a charge process. Some tests suggest that lower/slower charge rates help achieve a longer LiPo lifespan. I wouldn't recommend trickle-charging the batteries throughout the charge cycle because it would take a long time to charge and balance high-capacity 3S packs and there is no real benefit by charging slower than half the C rating. A 2700mAh pack (such as the B2 stock battery) has a C rating that suggests it can be charged at 2.7Amps. However, as mentioned before, Parrot recommends "Charging at 3.5A Max" which is higher than a usual 1C charge rate of LiPo batteries. I have charged one of mine at 3.5A for over a year with no signs of damage.

Whatever charger you do employ..watch the charger or be near it while it is powered on and especially while charging anything.

Keep it Safe. Keep it Healthy. Enjoy the Skies!
